ROMI DCM 3000
Machining Centres
ROMI DCM 3000
Presentation

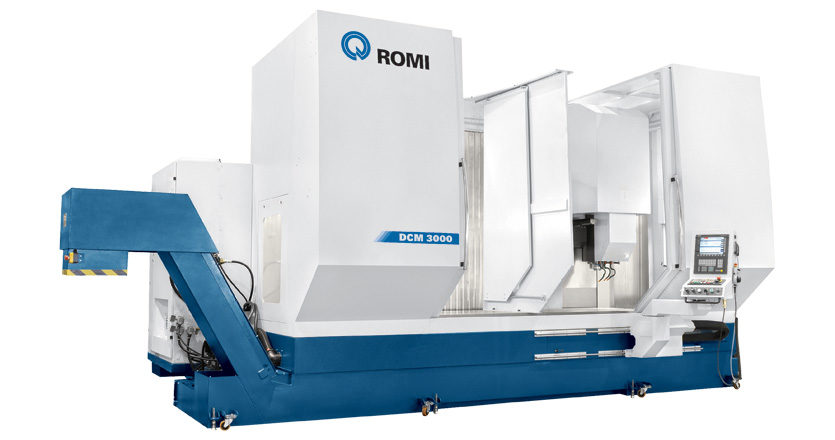

The moving column vertical machining center ROMI DCM 3000 equipped with CNC SIEMENS is designed to machine long parts with a high degree of accuracy, without any change of the machine’s geometric accuracy.
The DCM 3000 allows multiple setups it allows working in two distinct areas of the table (swinging mode), where a metal partition could be installed on the centre of the stroke of the X-axis, creating two distinct machining areas, which allows to perform the load and unload of parts in one area, while the other part is machined in the other area, resulting in significant productivity improvements.
ROMI DCM 3000
Main Technical Features
| ROMI DCM 3000 | ||
|---|---|---|
| Spindle Taper (ISO) | ISO | 40 |
| Speed Range | rpm | 6,000 |
| Rapid Traverse (X/Y) | m/min | 30 |
| Rapid Traverse (Z) | m/min | 24 |
| Table Surface | mm | 3,200 x 840 |
| Tools Capacity | - | 30 (40/60 opt) |
| Main Motor AC | hp / kW | 30 / 22 |
ROMI DCM 3000
Catalogues
Consult an expert
Need more information about this product? Send a request or call us on +003455453455
