ROMI G Series
Turning Centres
ROMI G Series
Presentation

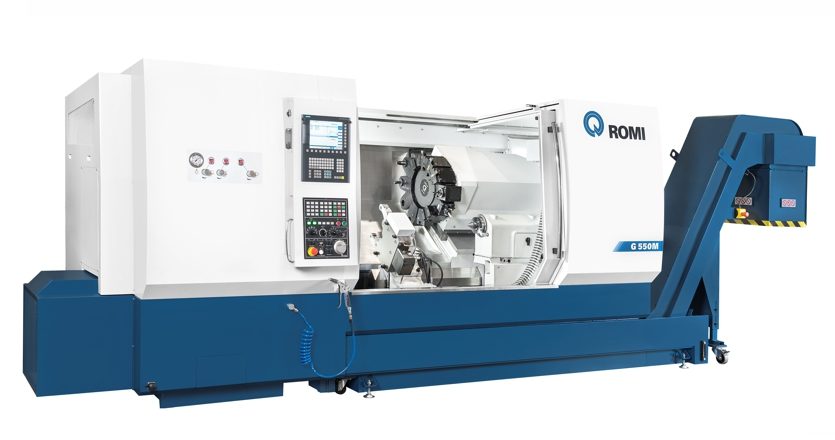

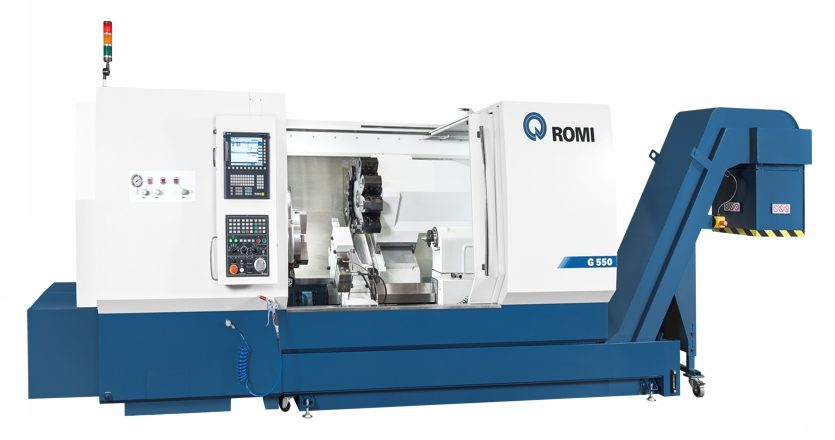

The G550 and G550M turning centres are equipped with SIEMENS CNC, they offer high productivity, robustness, high torque, and accuracy for machining in low to high production environments. A structure with a monoblock bed, longitudinal and transversal carriage supported on hardened and ground guides, making the G Series ideal for large size parts.
ROMI G Series
Main Technical Features
| ROMI G 550 | ROMI G 550M | ||
|---|---|---|---|
| Swing over Z axis | mm | 685 | 685 |
| Max. Cutting diameter | mm | 550 | 530 |
| Mac. Cutting diameters (between centres) | mm | 1,300 | 1,300 |
| X Travel | mm | 280 | 280 |
| Z Travel | mm | 1,340 | 1,340 |
| Headstock | |||
| Spindle nose | ASA | A2-8'' / A2-11'' | A2-8'' / A2-11'' |
| Spindle hole | mm | 104/142 | 104/142 |
| Speed range (direct drive) | rpm | 2 to 2,500 / 2 to 2,000 | 2 to 2,500 / 2 to 2,000 |
| X rapid traverse | m/min | 20 | 20 |
| Z rapid traverse | m / min | 24 | 24 |
| Number of tool stations | un | 12 | 12 |
| Main motor AC | cv / kW | 45.7 / 33.6 | 45.7 / 33.6 |
ROMI G Series
Catalogues
ROMI G Series
Videos
Consult an expert
Need more information about this product? Send a request or call us on +003455453455
