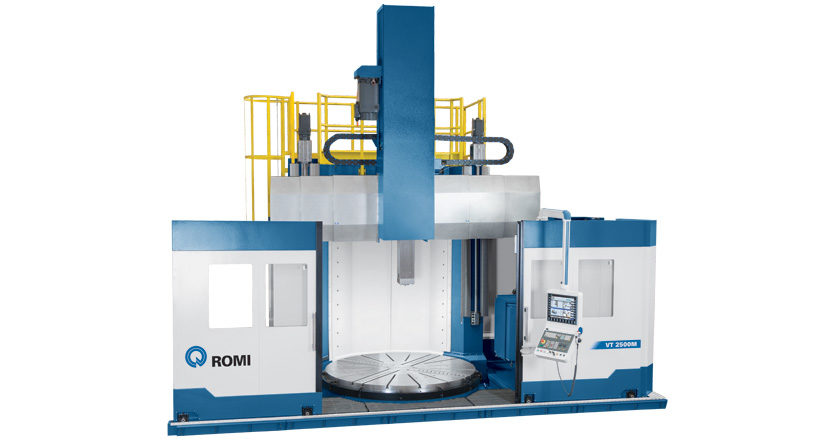

ROMI VT Series
Heavy Duty CNC Vertical Lathes
Presentation
The ROMI VT Series machines are equipped with SIEMENS CNC which offer a robust mechanical structure, ensuring stability and flexibility for machining processes of several types of large parts, serving multiple of sectors such as oil and gas, ethanol, naval, energy power generation, mining and other from base industries. The machines can be customised according to the application for which they are intended for.
The Dual Drive driving system on the main motor assures, beyond a high capacity of material removal, an increased accuracy and smoothness on machining operations which require the C axis.
The innovative system for multiple jaw assemblies on the chuck assures stability and decreases the machine setup time.
Main Technical Features
| VT 1400M | VT 2000M | VT 2500M | ||
|---|---|---|---|---|
| Maximum cutting diameter | mm | 1,600 | 2,200 | 2,700 |
| Maximum swing diameter | mm | 1,800 | 2,300 | 2,800 |
| Chuck diameter | kg | 1,400 | 2,000 | 2,500 |
| Speed range | ASA | 1 ~ 335 | 1 ~ 250 | 1 ~ 180 |
| Max. Torque (C Axis) | N.m | 31,500 | 39,000 | 52,000 |
| Power | hp / KW | 84 / 62 | 84 / 62 | 84 / 62 |
